Modern A Frame House Plan, 22'x24' Cabin, Floor Plans ,2 Floor Loft , Kitchen W/Structural Sketch-Up File and PDF instructions

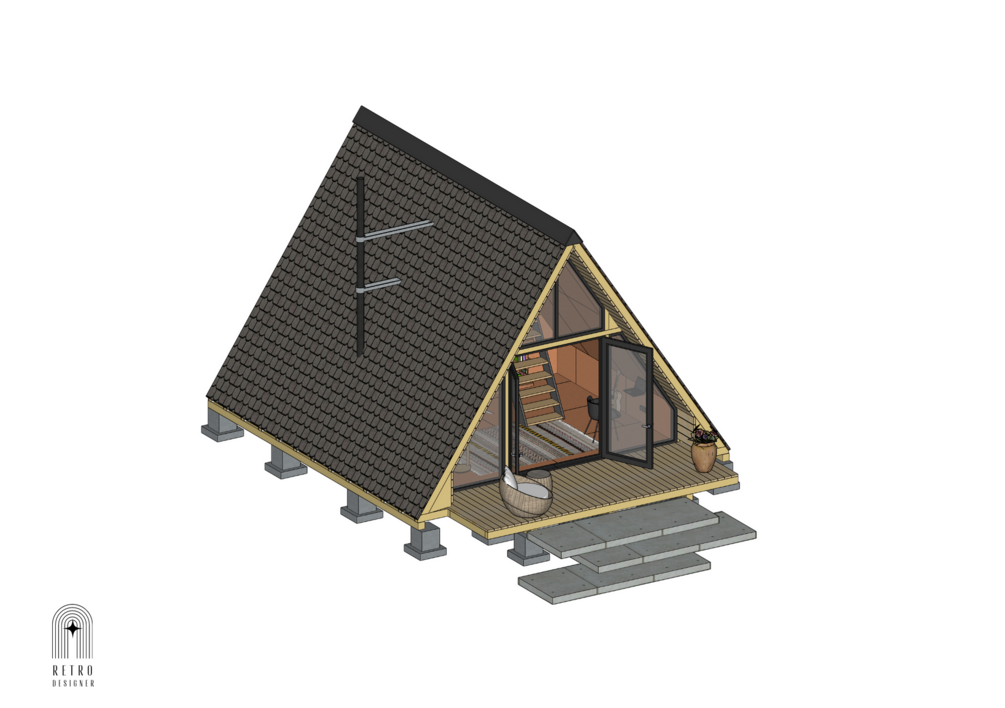

22"x24" A Frame House

It has plans, sections, and elevations. Also, construction details are included. You can do it by yourself or together with experienced people's help.

Delivered digitally with 55 Pages of A3 format PDF file.

Also, a 3D Wood Structure File in Sketchup format is included.

This drawing set is enough to help you get an estimated cost from a builder.


What is included in this project?

- Digital Download PDF A3 size 55 pages
- Floor plans with room dimensions and other dimensions
- Exterior elevations (4 facades)
- Two building sections
- Roof, wall, and floor assembly descriptions
- Additional 3D perspective details
- Sketch-up File of the Wood Structure Model


You can optimize the design according to your local authorities. PDF also has some suggestions but in any case any builder while constructing the house may need to do some extras.

In the dowland file you will access the Googledrive to dowland the project Pdf and Sketchup file.

This is an architectural project. It does not provide mechanical or electrical projects. You may need them according to your local legislation.

For any questions do not hesitate to ask me questions.

This digital product does NOT return or exchanged.

For changes to the project please send me a message.

For personal questions or changes, you can contact me.
